Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Hangzhou Kaishan Air Compressor Co., Ltd
Contact Now

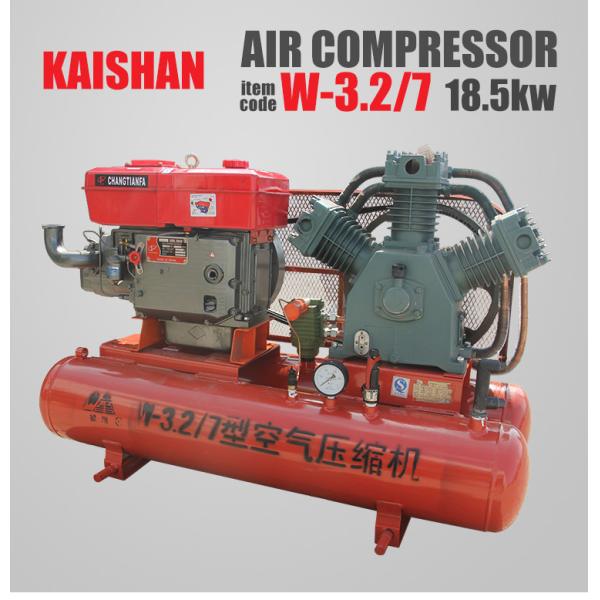

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Brand Name : kaishan

Model Number : W-3.2/7

Certification : ce

Place of Origin : Zhejiang, China

MOQ : 1

Price : $600-1500 per unit

Payment Terms : Western Union, T/T, L/C

Delivery Time : 3-10 days after the payment

Packaging Details : export wooden case

Capacity : 3.2m3/min

Working pressure : 7bar air compressor

Product name : air compressor for jack hammer

Application : mining,Drilling Operations; hydroblasting; cable blowing and so on,Mine

Power source : Diesel driven air compressor

Type : Piston type

Configuration : Portable type

Lubrication style : Oil-less

Contact Now

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Advantages
1.Valve plate and spring strip:made of special steel from Sweden and after special treatment;high efficient and reliable.
2.Piston ring:special design;integral casting;excellent flexibility;lowest lubricating oil consumption.

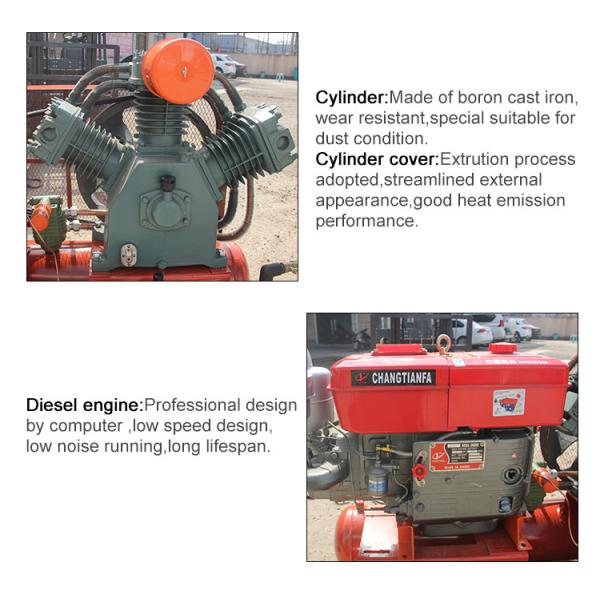

3.Cylinder:made of boron cast iron;wear resistant;special suitable for dusty condition.
4.Cylinder cover:extrusion process adopted;streamlined external appearance;good heat emission performance.
5. Simple structure light weight easy to move.
6. Energy saving Low cost.
7.Easy operating and maintenance.

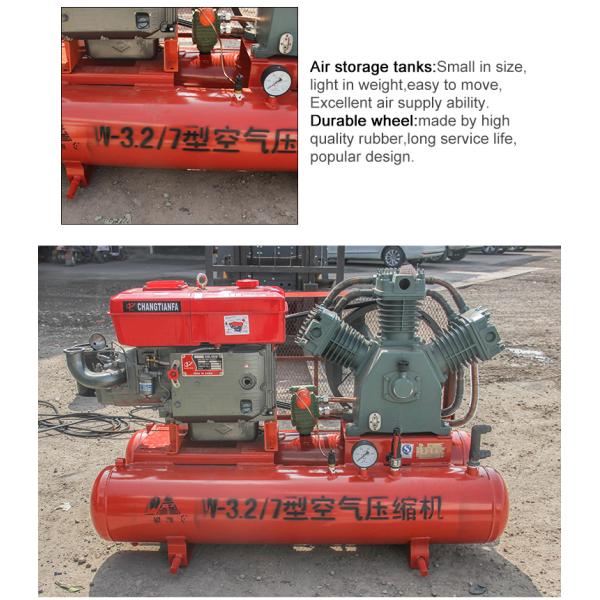

Details Images
Model
W-3.2/7
Exhaust pressure(Mpa)
0.7
Air Consumption(m3/min)
3.2
Cylinders(Diamm*Qty)
125*3
Diesel engine
S1125
Dimension(mm)
1960*900*1250
Weight(kg)
580

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole

Diesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling BoreholeDiesel Driven Portable Oil Less 25hp 7bar 100 Psi Pneumatic Air Compressor For Drilling Borehole
